2.6.0 (December 12, 2025) latest ​
This release focuses on advanced monitoring capabilities, improved data visualization, and better user experience.
New features include tilt compensation for displacement measurements, external sensor support, an interactive distance measurement tool, customizable sensor presets and notifications, and deep linking for mobile-to-web navigation.
Table of Contents
🚀 Kurloo Nest ​
Application-Based Monitoring ​
Categorize your sensors by monitoring application type for better organization and reporting.

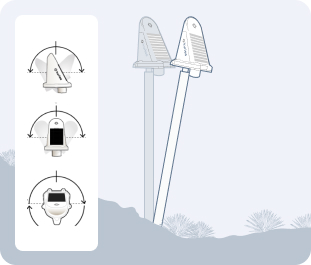

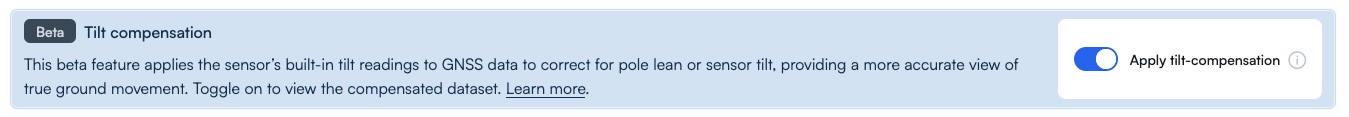

Tilt Compensation beta ​
Tilt compensation improves displacement measurement accuracy by accounting for the physical tilt of the sensor mounting pole. This means you're measuring actual ground movement, not the combined effect of ground movement and pole lean. Check out the tilt compensation documentation for details.

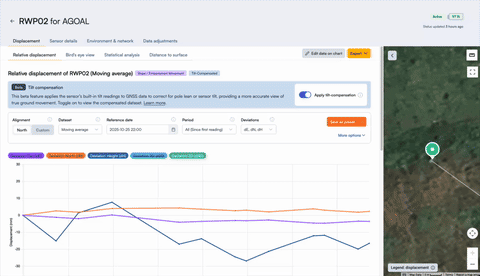

Enable tilt compensation on your monitoring sensors ​
Key capabilities ​
- Automatic tilt lookup: Finds applicable tilt readings within a 7-day lookback period using binary search
- Advanced calibration: Compensates for pole tilt with mathematical transformations:
- Horizontal displacement:
X = h × sin(tiltB),Y = h × sin(tiltA) - Rotation compensation based on sensor heading
- Vertical offset:
cH = sqrt(h² - (x² + y²))
- Horizontal displacement:
- Visual indicators: A toggle appears above the graph when tilt compensation is enabled

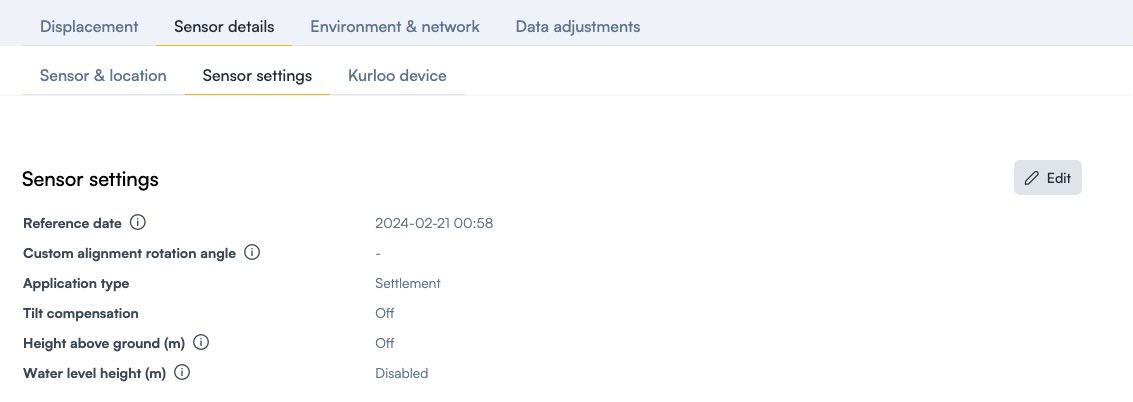

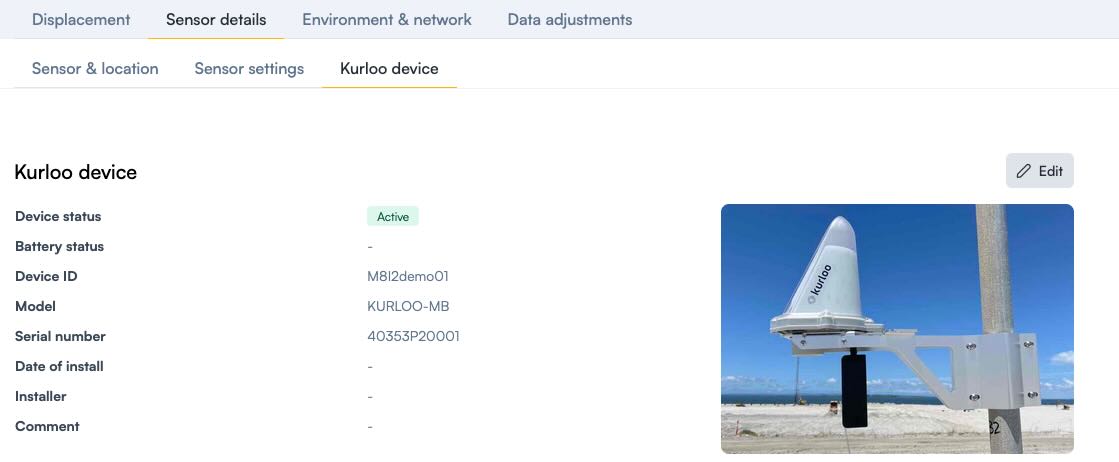

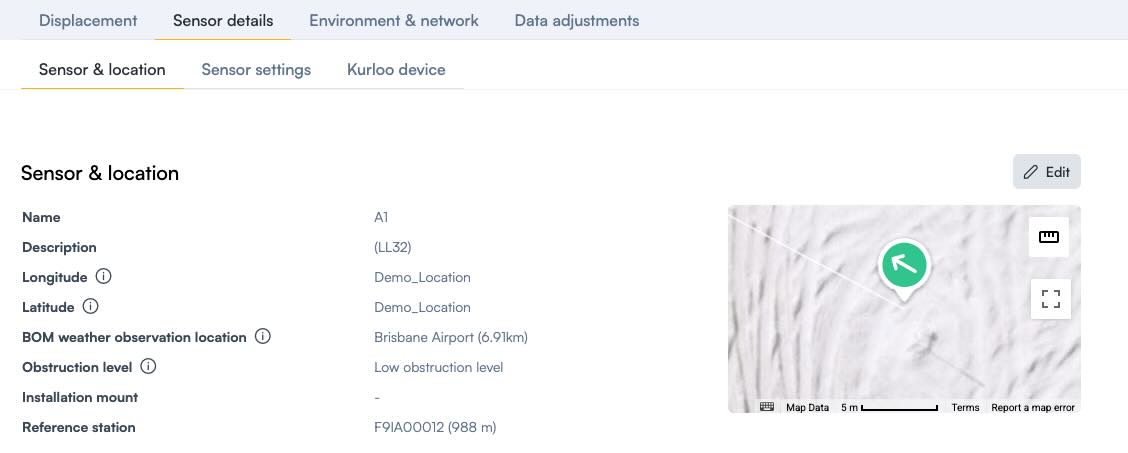

Sensor settings interface updates ​
Sensor details now show only the information relevant to each sensor category.

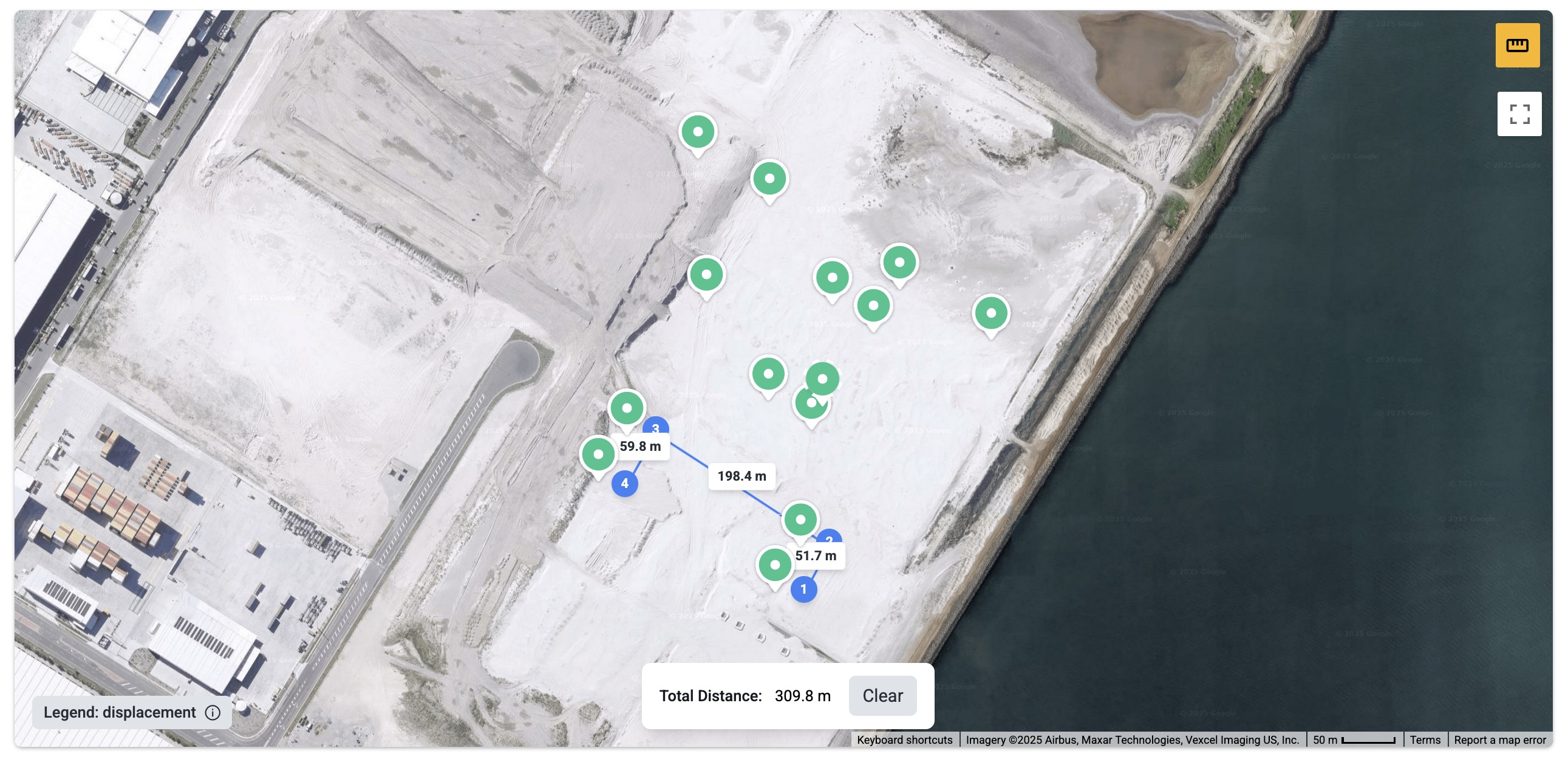

Distance Measurement Tool ​
Measure distances directly on the map with click-to-place points and drag-to-reposition controls.
How to use it ​
- Click to place points: Add measurement points by clicking on the map
- Click to remove points: Remove points by clicking on existing markers
- Drag to reposition: Drag measurement points to adjust their positions
- Real-time calculation: Distance displays instantly in meters
- Segment display: See individual segment distances and total distance
- Visual feedback: Blue polyline connects measurement points with distance labels
Finding the tool ​
Look for the measurement button in the top-right corner of the sensor map. When active, it's highlighted in the primary color. The tooltip shows: "Measure distance. Click to place or remove points. Drag to reposition."
Distances display in meters with one decimal place: X,XXX.X m
Sensor Display Presets ​
Save your chart display configurations and reuse them across sensors.
What you can save ​
- Dataset visibility, chart settings, overlays, and display options
- Different presets for different chart types (relative, absolute, etc.)
- Project-wide defaults that apply to all sensors
- Presets automatically exclude temporal settings like reference dates
Using presets ​
- Configure your chart display
- Set as project default (optional)
- Load saved presets from the split button dropdown

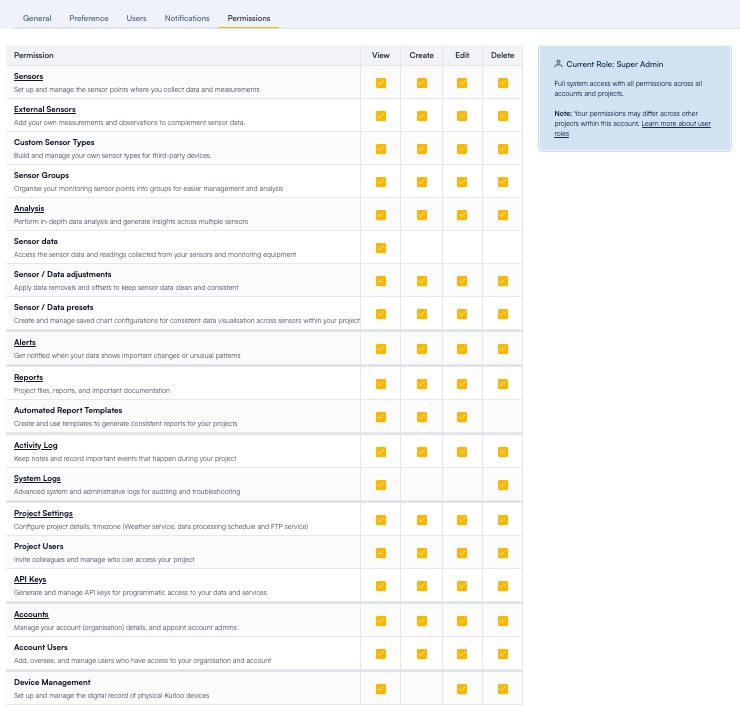

User Permissions Tab ​
View detailed permissions for your project in Project Settings → Permissions Tab.

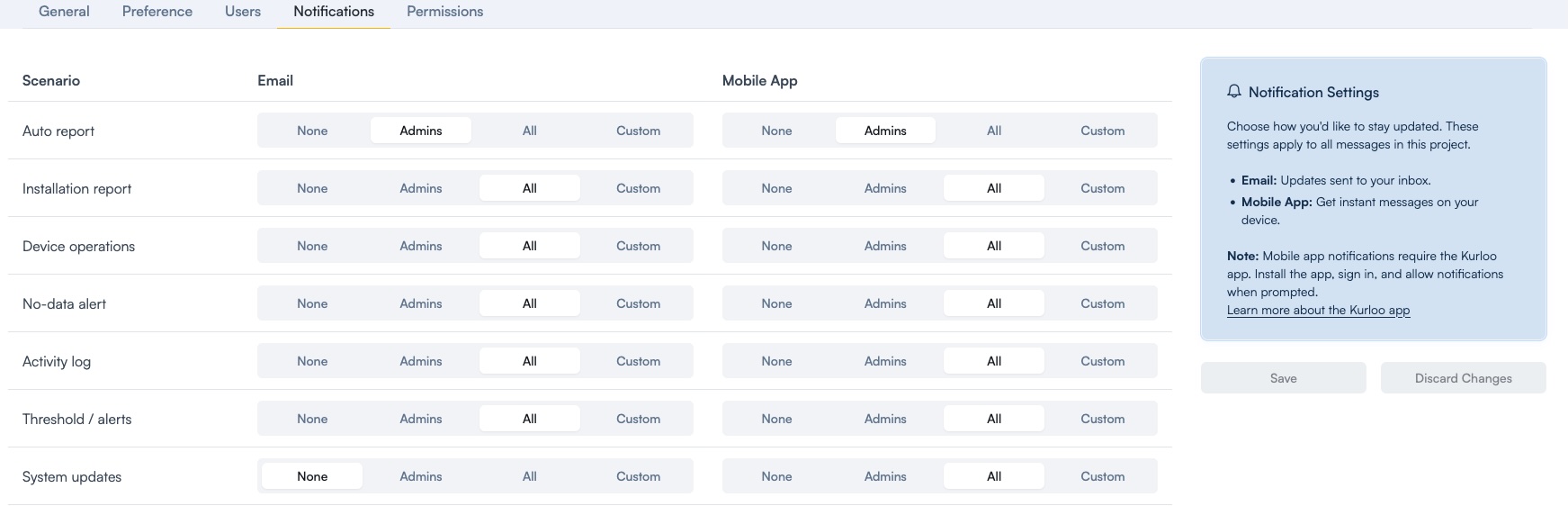

Customizable Project Notifications ​
Customize notification settings at the project level.
What you can configure ​
- Notification preferences for different event types
- Notification delivery channels (email, mobile app)
- Notification rules for specific project contexts
External Sensor Imports ​
Import data from external sensors with custom visualization support.

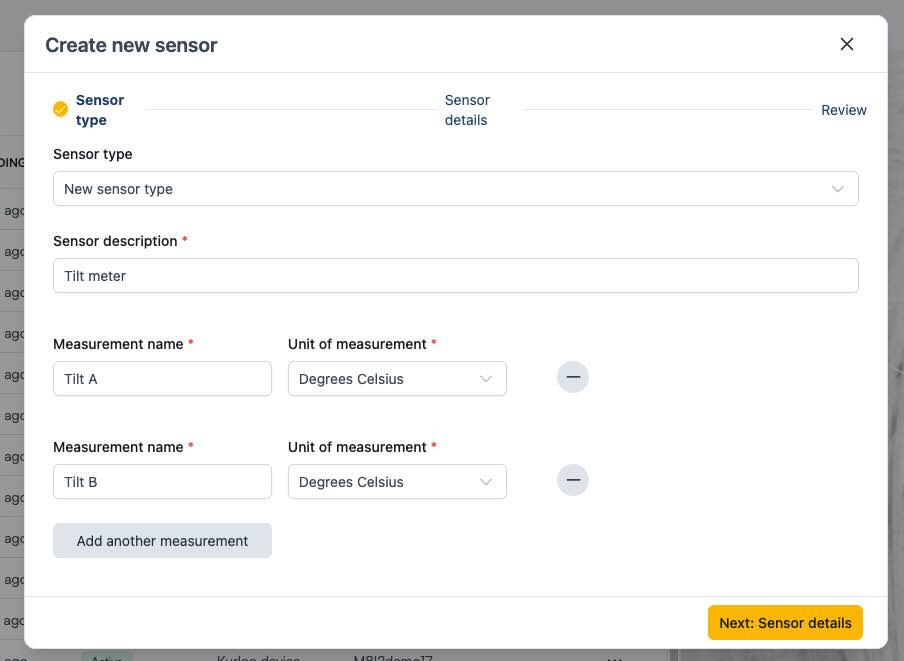

Create custom sensor types ​
- Create your own sensor type for external monitoring equipment
- Improved and more secure data point import
- Custom sensor markers with different styles for different types

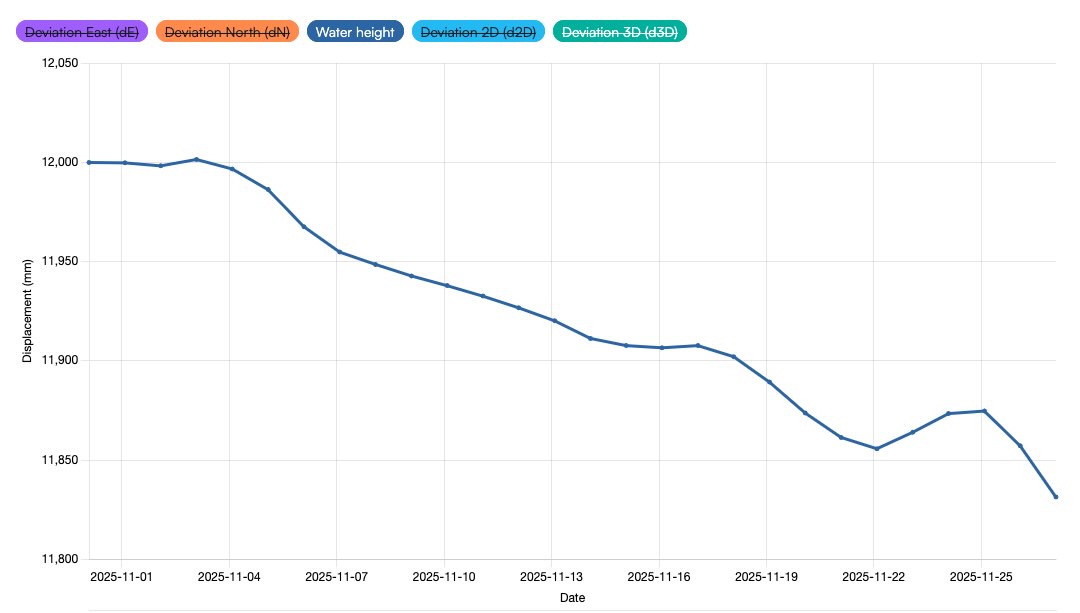

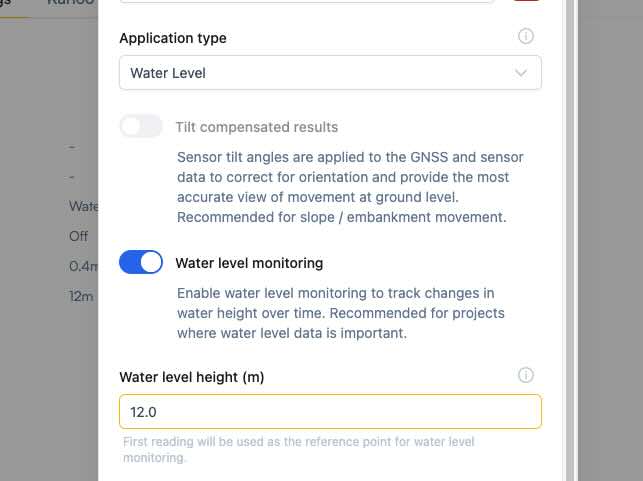

Water Level Monitoring ​
Track water levels with dedicated sensor monitoring and visualization.
Data Adjustment Visualization ​
See exactly where and when data adjustments have been made.
- Visual overlay shows adjustment periods
- Clear distinction between adjusted and original data
- Improved styling for better readability
- Better feedback when editing data
Improvements & Optimizations ​
Chart & Visualization ​
Chart tooltips are now faster and smoother.
- Optimized rendering for faster tooltip display
- Reduced computational overhead
- Smoother interactions
Bug Fixes ​
- Fixed duplicate markers for reference stations on the sensor map
📱 Kurloo Mobile App ​
Tribrach Installation Type ​
Choose "Tribrach" as an installation type for tribrach-mounted sensors, with specific guidance for this installation method.
Height Measurement Enhancements ​
Get better accuracy with improved guidance for height measurements.
- Context-specific images show how to measure height in different scenarios
- Validation ensures you provide all required information
- Guides for ground mounting, wall mounting, and tribrach installations
- Required field validation prevents incomplete setups
Image Updates ​
- Replaced "Other" mount type image with overhanging wall image for clarity
